给您的 MongoDB 定期做个体检：MongoDB 诊断
接下来的一些列文章会为大家介绍日常工作中常用的 NoSQL 产品 MongoDB。主要涉及到： MongoDB 的安装及基本使用 MongoDB 文档查询 MongoDB 复制集 MongoDB 分片集群的介绍及搭建 MongoDB 安全加密 MongoDB 诊断
我们会用六篇文章近五万字来阐述 MongoDB 运维相关的日常实战事宜。您当前看到的是系列文章的第六篇：《MongoDB 诊断》。
随着 MongoDB 的不断运行且数据量日益增多，就会不免产生一些问题。当问题出现时，该怎么办呢？我们会从以下几个方面进行探讨。 日志 当有个长期运行的 MongoDB 进程时，我们可能想自己写个脚本来定期轮转日志文件。其实不用，MongoDB 已经提供了 logrotate命令来完成这个操作，可以直接从 shell 里启动使用：use adminrs0:PRIMARY> db.runCommand({logRotate: 1}){"ok" : 1,"$clusterTime" : {"clusterTime" : Timestamp(1679966896, 1),"signature" : {"hash" : BinData(0,"50vWhFp/59fAKwBbUQUDxApF/+g="),"keyId" : NumberLong("7173500260914823169")}},"operationTime" : Timestamp(1679966896, 1)}需要注意：logRotate 是区分大小写的。
或者可以向 Mongo 进程发送 SIGUSR1信号：kill -SIGUSR1 <mongo_pid>诊断命令
MongoDB 包含了许多命令可以报告内部状态，这些命令背后都是监控 MongoDB。下面是一些常见命令的参考命令，希望对大家有所帮助： - 全局服务器统计信息：
db.serverStatus(); - 统计当前运行的操作：
db.currentOp(); - 包含空闲的操作：
db currentOp(true) - 每个数据库的计数器和活动统计：
db.runCommand({top: 1}) ; - 查看当前数据库信息：
db.stats()
我们接下来分别看一看上述这几个命令的输出。
01
全局服务器信息统计
该命令输出的信息非常详细，当 MongoDB 出现问题时，是一个不错的诊断命令。 rs0:PRIMARY> db.serverStatus(){"host" : "mongo03.tyun.cn","version" : "4.4.15","process" : "mongod","pid" : NumberLong(14092),"uptime" : 18727504,"uptimeMillis" : NumberLong("18727504137"),"uptimeEstimate" : NumberLong(18727504),"localTime" : ISODate("2023-03-28T01:30:35.805Z"),"asserts" : {"regular" : 0,"warning" : 0,"msg" : 0,"user" : 1380727,"rollovers" : 0},"connections" : {"current" : 17,"available" : 51183,"totalCreated" : 3253,"active" : 7,"exhaustIsMaster" : 3,"exhaustHello" : 2,"awaitingTopologyChanges" : 176},"defaultRWConcern" : {"localUpdateWallClockTime" : ISODate("2022-08-23T07:25:32.995Z")},"tcmalloc" : {"pageheap_free_bytes" : 94162944,"pageheap_unmapped_bytes" : 349478912,"max_total_thread_cache_bytes" : 1024458752,"current_total_thread_cache_bytes" : 238198560,"total_free_bytes" : 637257904,"central_cache_free_bytes" : 397502736,"transfer_cache_free_bytes" : 1556608,"thread_cache_free_bytes" : 238198560,"aggressive_memory_decommit" : 0,"pageheap_committed_bytes" : NumberLong("3653197824"),"pageheap_scavenge_count" : 13297522,"pageheap_commit_count" : 14804116,"pageheap_total_commit_bytes" : NumberLong("60304102580224"),"pageheap_decommit_count" : 13297522,"pageheap_total_decommit_bytes" : NumberLong("60300449382400"),"pageheap_reserve_count" : 459,"pageheap_total_reserve_bytes" : NumberLong("4002676736"),"spinlock_total_delay_ns" : NumberLong("111430768421"),"release_rate" : 1,"formattedString" : "------------------------------------------------\nMALLOC: 2921777552 ( 2786.4 MiB) Bytes in use by application\nMALLOC: + 94162944 ( 89.8 MiB) Bytes in page heap freelist\nMALLOC: + 397502736 ( 379.1 MiB) Bytes in central cache freelist\nMALLOC: + 1556608 ( 1.5 MiB) Bytes in transfer cache freelist\nMALLOC: + 238197984 ( 227.2 MiB) Bytes in thread cache freelists\nMALLOC: + 24510464 ( 23.4 MiB) Bytes in malloc metadata\nMALLOC: ------------\nMALLOC: = 3677708288 ( 3507.3 MiB) Actual memory used (physical + swap)\nMALLOC: + 349478912 ( 333.3 MiB) Bytes released to OS (aka unmapped)\nMALLOC: ------------\nMALLOC: = 4027187200 ( 3840.6 MiB) Virtual address space used\nMALLOC:\nMALLOC: 265177 Spans in use\nMALLOC: 72 Thread heaps in use\nMALLOC: 4096 Tcmalloc page size\n------------------------------------------------\nCall ReleaseFreeMemory() to release freelist memory to the OS (via madvise()).\nBytes released to the OS take up virtual address space but no physical memory.\n"}},"trafficRecording" : {"running" : false},"transactions" : {"retriedCommandsCount" : NumberLong(0),"retriedStatementsCount" : NumberLong(0),"transactionsCollectionWriteCount" : NumberLong(0),"currentActive" : NumberLong(0),"currentInactive" : NumberLong(0),"currentOpen" : NumberLong(0),"totalAborted" : NumberLong(0),"totalCommitted" : NumberLong(0),"totalStarted" : NumberLong(0),"totalPrepared" : NumberLong(0),"totalPreparedThenCommitted" : NumberLong(0),"totalPreparedThenAborted" : NumberLong(0),"currentPrepared" : NumberLong(0)},"transportSecurity" : {"1.0" : NumberLong(0),"1.1" : NumberLong(0),"1.2" : NumberLong(0),"1.3" : NumberLong(0),"unknown" : NumberLong(0)},"twoPhaseCommitCoordinator" : {"totalCreated" : NumberLong(0),"totalStartedTwoPhaseCommit" : NumberLong(0),"totalAbortedTwoPhaseCommit" : NumberLong(0),"totalCommittedTwoPhaseCommit" : NumberLong(0),"currentInSteps" : {"writingParticipantList" : NumberLong(0),"waitingForVotes" : NumberLong(0),"writingDecision" : NumberLong(0),"waitingForDecisionAcks" : NumberLong(0),"deletingCoordinatorDoc" : NumberLong(0)}},"wiredTiger" : {"uri" : "statistics:","block-manager" : {"blocks pre-loaded" : 23,"blocks read" : 4268362,"blocks written" : 39421996,"bytes read" : 48401854464,"bytes read via memory map API" : 0,"bytes read via system call API" : 0,"bytes written" : 418967826432,"bytes written for checkpoint" : 305570754560,"bytes written via memory map API" : 0,"bytes written via system call API" : 0,"mapped blocks read" : 0,"mapped bytes read" : 0,"number of times the file was remapped because it changed size via fallocate or truncate" : 0,"number of times the region was remapped via write" : 0},"capacity" : {"background fsync file handles considered" : 0,"background fsync file handles synced" : 0,"background fsync time (msecs)" : 0,"bytes read" : 39614959616,"bytes written for checkpoint" : 239185165378,"bytes written for eviction" : 97795992160,"bytes written for log" : 157233860864,"bytes written total" : 494215018402,"threshold to call fsync" : 0,"time waiting due to total capacity (usecs)" : 0,"time waiting during checkpoint (usecs)" : 0,"time waiting during eviction (usecs)" : 0,"time waiting during logging (usecs)" : 0,"time waiting during read (usecs)" : 0},"checkpoint-cleanup" : {"pages added for eviction" : 81667,"pages removed" : 16946,"pages skipped during tree walk" : 3064011324,"pages visited" : 5381579176},"connection" : {"auto adjusting condition resets" : 6326104,"auto adjusting condition wait calls" : 121447994,"auto adjusting condition wait raced to update timeout and skipped updating" : 61,"detected system time went backwards" : 0,"files currently open" : 71,"hash bucket array size for data handles" : 512,"hash bucket array size general" : 512,"memory allocations" : 14030754494,"memory frees" : 14027269174,"memory re-allocations" : 161883962,"pthread mutex condition wait calls" : 314479507,"pthread mutex shared lock read-lock calls" : 12181240198,"pthread mutex shared lock write-lock calls" : 743154980,"total fsync I/Os" : 275579938,"total read I/Os" : 4582332,"total write I/Os" : 313739357},"mem" : {"bits" : 64,"resident" : 3423,"virtual" : 5564,"supported" : true},"metrics" : {"aggStageCounters" : {"$_internalInhibitOptimization" : NumberLong(0),"$_internalSplitPipeline" : NumberLong(0),"$addFields" : NumberLong(1),"$bucket" : NumberLong(0),"$bucketAuto" : NumberLong(0),"$changeStream" : NumberLong(0),"$collStats" : NumberLong(0),"$count" : NumberLong(0),"$currentOp" : NumberLong(0),"$documents" : NumberLong(0),"$facet" : NumberLong(0),"$geoNear" : NumberLong(0),"$graphLookup" : NumberLong(0),"$group" : NumberLong(0),"$indexStats" : NumberLong(0),"$limit" : NumberLong(0),"$listLocalSessions" : NumberLong(0),"$listSessions" : NumberLong(0),"$lookup" : NumberLong(0),"$match" : NumberLong(1),"$merge" : NumberLong(0),"$mergeCursors" : NumberLong(0),"$out" : NumberLong(0),"$planCacheStats" : NumberLong(0),"$project" : NumberLong(2),"$queue" : NumberLong(0),"$redact" : NumberLong(0),"$replaceRoot" : NumberLong(0),"$replaceWith" : NumberLong(0),"$sample" : NumberLong(0),"$set" : NumberLong(46126),"$skip" : NumberLong(0),"$sort" : NumberLong(1),"$sortByCount" : NumberLong(0),"$unionWith" : NumberLong(0),"$unset" : NumberLong(0),"$unwind" : NumberLong(0)},"commands" : {"<UNKNOWN>" : NumberLong(2),"_isSelf" : {"failed" : NumberLong(0),"total" : NumberLong(13)},"buildInfo" : {"failed" : NumberLong(0),"total" : NumberLong(690365)},"count" : {"failed" : NumberLong(0),"total" : NumberLong(6)},"delete" : {"failed" : NumberLong(0),"total" : NumberLong(48)},"endSessions" : {"failed" : NumberLong(0),"total" : NumberLong(134)},"find" : {"failed" : NumberLong(0),"total" : NumberLong(2142077)},"getCmdLineOpts" : {"failed" : NumberLong(0),"total" : NumberLong(1380235)},"getDiagnosticData" : {"failed" : NumberLong(0),"total" : NumberLong(2070345)},"getFreeMonitoringStatus" : {"failed" : NumberLong(0),"total" : NumberLong(5)},"getLastError" : {"failed" : NumberLong(0),"total" : NumberLong(101)},"getLog" : {"failed" : NumberLong(0),"total" : NumberLong(5)},"getMore" : {"failed" : NumberLong(1),"total" : NumberLong(465344562)},"getnonce" : {"failed" : NumberLong(0),"total" : NumberLong(2)},"hello" : {"failed" : NumberLong(268),"total" : NumberLong(1384888)},"insert" : {"failed" : NumberLong(0),"total" : NumberLong(1)},"isMaster" : {"failed" : NumberLong(2),"total" : NumberLong(7731521)},"killCursors" : {"failed" : NumberLong(0),"total" : NumberLong(5)},"listCollections" : {"failed" : NumberLong(0),"total" : NumberLong(10)},"listDatabases" : {"failed" : NumberLong(0),"total" : NumberLong(57515)},"listIndexes" : {"failed" : NumberLong(3),"total" : NumberLong(124851)},"logRotate" : {"failed" : NumberLong(0),"total" : NumberLong(1)},"ping" : {"failed" : NumberLong(0),"total" : NumberLong(4436308)},"replSetGetConfig" : {"failed" : NumberLong(0),"total" : NumberLong(2070345)},"replSetGetRBID" : {"failed" : NumberLong(0),"total" : NumberLong(6)},"replSetGetStatus" : {"failed" : NumberLong(0),"total" : NumberLong(690128)},"replSetHeartbeat" : {"failed" : NumberLong(0),"total" : NumberLong(17000850)},"replSetRequestVotes" : {"failed" : NumberLong(0),"total" : NumberLong(4)},"replSetUpdatePosition" : {"failed" : NumberLong(0),"total" : NumberLong(390211482)},"rolesInfo" : {"failed" : NumberLong(0),"total" : NumberLong(1)},"saslContinue" : {"failed" : NumberLong(6),"total" : NumberLong(62466)},"saslStart" : {"failed" : NumberLong(0),"total" : NumberLong(57875)},"serverStatus" : {"failed" : NumberLong(0),"total" : NumberLong(1)},"update" : {"arrayFilters" : NumberLong(0),"failed" : NumberLong(0),"pipeline" : NumberLong(23063),"total" : NumberLong(511271)},"usersInfo" : {"failed" : NumberLong(0),"total" : NumberLong(1)},"whatsmyuri" : {"failed" : NumberLong(0),"total" : NumberLong(5)}},"cursor" : {"timedOut" : NumberLong(0),"open" : {"noTimeout" : NumberLong(0),"pinned" : NumberLong(1),"total" : NumberLong(1)}},"document" : {"deleted" : NumberLong(0),"inserted" : NumberLong(1),"returned" : NumberLong(322743825),"updated" : NumberLong(522796)},"getLastError" : {"wtime" : {"num" : 11577,"totalMillis" : 37265},"wtimeouts" : NumberLong(1),"default" : {"unsatisfiable" : NumberLong(0),"wtimeouts" : NumberLong(0)}},"operation" : {"scanAndOrder" : NumberLong(15),"writeConflicts" : NumberLong(9825)},"query" : {"planCacheTotalSizeEstimateBytes" : NumberLong(0),"updateOneOpStyleBroadcastWithExactIDCount" : NumberLong(0),"multiPlanner" : {"classicCount" : NumberLong(0),"classicMicros" : NumberLong(0),"classicWorks" : NumberLong(0),"histograms" : {"classicMicros" : [{"lowerBound" : NumberLong(0),"count" : NumberLong(0)},{"lowerBound" : NumberLong(1024),"count" : NumberLong(0)},{"lowerBound" : NumberLong(4096),"count" : NumberLong(0)},{"lowerBound" : NumberLong(16384),"count" : NumberLong(0)},{"lowerBound" : NumberLong(65536),"count" : NumberLong(0)},{"lowerBound" : NumberLong(262144),"count" : NumberLong(0)},{"lowerBound" : NumberLong(1048576),"count" : NumberLong(0)},{"lowerBound" : NumberLong(4194304),"count" : NumberLong(0)},{"lowerBound" : NumberLong(16777216),"count" : NumberLong(0)},{"lowerBound" : NumberLong(67108864),"count" : NumberLong(0)},{"lowerBound" : NumberLong(268435456),"count" : NumberLong(0)},{"lowerBound" : NumberLong(1073741824),"count" : NumberLong(0)}],"classicNumPlans" : [{"lowerBound" : NumberLong(0),"count" : NumberLong(0)},{"lowerBound" : NumberLong(2),"count" : NumberLong(0)},{"lowerBound" : NumberLong(4),"count" : NumberLong(0)},{"lowerBound" : NumberLong(8),"count" : NumberLong(0)},{"lowerBound" : NumberLong(16),"count" : NumberLong(0)},{"lowerBound" : NumberLong(32),"count" : NumberLong(0)}],"classicWorks" : [{"lowerBound" : NumberLong(0),"count" : NumberLong(0)},{"lowerBound" : NumberLong(128),"count" : NumberLong(0)},{"lowerBound" : NumberLong(256),"count" : NumberLong(0)},{"lowerBound" : NumberLong(512),"count" : NumberLong(0)},{"lowerBound" : NumberLong(1024),"count" : NumberLong(0)},{"lowerBound" : NumberLong(2048),"count" : NumberLong(0)},{"lowerBound" : NumberLong(4096),"count" : NumberLong(0)},{"lowerBound" : NumberLong(8192),"count" : NumberLong(0)},{"lowerBound" : NumberLong(16384),"count" : NumberLong(0)},{"lowerBound" : NumberLong(32768),"count" : NumberLong(0)}]}}},"queryExecutor" : {"scanned" : NumberLong(1070392),"scannedObjects" : NumberLong(323266658),"collectionScans" : {"nonTailable" : NumberLong(1386454),"total" : NumberLong(1386461)}},"record" : {"moves" : NumberLong(0)},"repl" : {"executor" : {"pool" : {"inProgressCount" : 0},"queues" : {"networkInProgress" : 0,"sleepers" : 3},"unsignaledEvents" : 0,"shuttingDown" : false,"networkInterface" : "DEPRECATED: getDiagnosticString is deprecated in NetworkInterfaceTL"},"apply" : {"attemptsToBecomeSecondary" : NumberLong(19),"batchSize" : NumberLong(318318346),"batches" : {"num" : 278600198,"totalMillis" : 5795319},"ops" : NumberLong(318318943)},"buffer" : {"count" : NumberLong(0),"maxSizeBytes" : NumberLong(268435456),"sizeBytes" : NumberLong(0)},"initialSync" : {"completed" : NumberLong(0),"failedAttempts" : NumberLong(0),"failures" : NumberLong(0)},"network" : {"bytes" : NumberLong("57955381887"),"getmores" : {"num" : 364468339,"totalMillis" : 15110995960,"numEmptyBatches" : NumberLong(67943454)},"notPrimaryLegacyUnacknowledgedWrites" : NumberLong(0),"notPrimaryUnacknowledgedWrites" : NumberLong(0),"oplogGetMoresProcessed" : {"num" : 465344548,"totalMillis" : 200161},"ops" : NumberLong(318318349),"readersCreated" : NumberLong(5),"replSetUpdatePosition" : {"num" : NumberLong(455260555)}},"stateTransition" : {"lastStateTransition" : "stepUp","userOperationsKilled" : NumberLong(0),"userOperationsRunning" : NumberLong(5)},"syncSource" : {"numSelections" : NumberLong(28),"numTimesChoseDifferent" : NumberLong(3),"numTimesChoseSame" : NumberLong(0),"numTimesCouldNotFind" : NumberLong(25)}},"ttl" : {"deletedDocuments" : NumberLong(9),"passes" : NumberLong(312121)}},"ok" : 1,"$clusterTime" : {"clusterTime" : Timestamp(1679967033, 3),"signature" : {"hash" : BinData(0,"7p9I6mnYmAqWdGWHZuVRCfEIJtU="),"keyId" : NumberLong("7173500260914823169")}},"operationTime" : Timestamp(1679967033, 3)}02
统计当前运行的操作
rs0:PRIMARY> db.currentOp(){"inprog" : [{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "OplogApplier-0","active" : true,"currentOpTime" : "2023-03-28T01:37:05.539+00:00","effectiveUsers" : [{"user" : "__system","db" : "local"}],"opid" : -935445419,"op" : "none","ns" : "","command" : {},"numYields" : 0,"locks" : {},"waitingForLock" : false,"lockStats" : {},"waitingForFlowControl" : false,"flowControlStats" : {}},{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "TimestampMonitor","active" : true,"currentOpTime" : "2023-03-28T01:37:05.552+00:00","opid" : -935445412,"op" : "none","ns" : "","command" : {},"numYields" : 0,"waitingForLatch" : {"timestamp" : ISODate("2023-03-28T01:37:05.546Z"),"captureName" : "ServiceContext::_mutex"},"locks" : {},"waitingForLock" : false,"lockStats" : {},"waitingForFlowControl" : false,"flowControlStats" : {}},{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "ReplBatcher","active" : true,"currentOpTime" : "2023-03-28T01:37:05.552+00:00","opid" : -935445421,"op" : "none","ns" : "","command" : {},"numYields" : 0,"locks" : {},"waitingForLock" : false,"lockStats" : {"FeatureCompatibilityVersion" : {"acquireCount" : {"r" : NumberLong(1)}},"ReplicationStateTransition" : {"acquireCount" : {"w" : NumberLong(1)}},"Global" : {"acquireCount" : {"r" : NumberLong(1)}}},"waitingForFlowControl" : false,"flowControlStats" : {}},{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "conn333","connectionId" : 333,"client" : "10.20.20.11:42734","clientMetadata" : {"driver" : {"name" : "NetworkInterfaceTL","version" : "4.4.15"},"os" : {"type" : "Linux","name" : "CentOS Linux release 7.9.2009 (Core)","architecture" : "x86_64","version" : "Kernel 3.10.0-1160.62.1.el7.x86_64"}},"active" : true,"currentOpTime" : "2023-03-28T01:37:05.552+00:00","effectiveUsers" : [{"user" : "__system","db" : "local"}],"opid" : -935445430,"secs_running" : NumberLong(1),"microsecs_running" : NumberLong(1002908),"op" : "command","ns" : "admin.$cmd","command" : {"isMaster" : 1,"maxAwaitTimeMS" : NumberLong(10000),"topologyVersion" : {"processId" : ObjectId("630480eb8e13bda8cb16c7e9"),"counter" : NumberLong(28)},"internalClient" : {"minWireVersion" : 9,"maxWireVersion" : 9},"$db" : "admin"},"numYields" : 0,"waitingForLatch" : {"timestamp" : ISODate("2023-03-28T01:37:04.649Z"),"captureName" : "FutureResolution"},"locks" : {},"waitingForLock" : false,"lockStats" : {},"waitingForFlowControl" : false,"flowControlStats" : {}},{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "conn6901","connectionId" : 6901,"client" : "10.20.20.19:56616","appName" : "MongoDB Shell","clientMetadata" : {"application" : {"name" : "MongoDB Shell"},"driver" : {"name" : "MongoDB Internal Client","version" : "4.4.15"},"os" : {"type" : "Linux","name" : "CentOS Linux release 7.9.2009 (Core)","architecture" : "x86_64","version" : "Kernel 3.10.0-1160.62.1.el7.x86_64"}},"active" : true,"currentOpTime" : "2023-03-28T01:37:05.552+00:00","effectiveUsers" : [{"user" : "root","db" : "admin"}],"opid" : -935445413,"lsid" : {"id" : UUID("5daca131-7d85-4e21-a44b-2b1ded973009"),"uid" : BinData(0,"Y5mrDaxi8gv8RmdTsQ+1j7fmkr7JUsabhNmXAheU0fg=")},"secs_running" : NumberLong(0),"microsecs_running" : NumberLong(22989),"op" : "command","ns" : "admin.$cmd.aggregate","command" : {"currentOp" : 1,"lsid" : {"id" : UUID("5daca131-7d85-4e21-a44b-2b1ded973009")},"$clusterTime" : {"clusterTime" : Timestamp(1679967416, 1),"signature" : {"hash" : BinData(0,"hZEpDTiaiD3Zna+djn4cNU7WLjE="),"keyId" : NumberLong("7173500260914823169")}},"$db" : "admin"},"numYields" : 0,"locks" : {},"waitingForLock" : false,"lockStats" : {},"waitingForFlowControl" : false,"flowControlStats" : {}},{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "OplogCapMaintainerThread-local.oplog.rs","active" : true,"currentOpTime" : "2023-03-28T01:37:05.552+00:00","opid" : -964016203,"op" : "none","ns" : "","command" : {},"numYields" : 0,"locks" : {},"waitingForLock" : false,"lockStats" : {"FeatureCompatibilityVersion" : {"acquireCount" : {"w" : NumberLong(1)}},"ReplicationStateTransition" : {"acquireCount" : {"w" : NumberLong(1)}},"Global" : {"acquireCount" : {"w" : NumberLong(1)}}},"waitingForFlowControl" : false,"flowControlStats" : {}},{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "conn2762","connectionId" : 2762,"client" : "10.20.20.41:33548","appName" : "QAN-mongodb-profiler-/agent_id/549d2b38-caf8-44a4-9903-28f769a12e68","clientMetadata" : {"driver" : {"name" : "mongo-go-driver","version" : "v1.11.1"},"os" : {"type" : "linux","architecture" : "amd64"},"platform" : "go1.19.1","application" : {"name" : "QAN-mongodb-profiler-/agent_id/549d2b38-caf8-44a4-9903-28f769a12e68"}},"active" : true,"currentOpTime" : "2023-03-28T01:37:05.552+00:00","opid" : -935445550,"secs_running" : NumberLong(7),"microsecs_running" : NumberLong(7041972),"op" : "command","ns" : "admin.$cmd","command" : {"hello" : 1,"helloOk" : true,"topologyVersion" : {"processId" : ObjectId("630480eb8e13bda8cb16c7e9"),"counter" : NumberLong(28)},"maxAwaitTimeMS" : NumberLong(10000),"$db" : "admin","$readPreference" : {"mode" : "primaryPreferred"}},"numYields" : 0,"waitingForLatch" : {"timestamp" : ISODate("2023-03-28T01:36:58.610Z"),"captureName" : "FutureResolution"},"locks" : {},"waitingForLock" : false,"lockStats" : {},"waitingForFlowControl" : false,"flowControlStats" : {}},{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "JournalFlusher","active" : true,"currentOpTime" : "2023-03-28T01:37:05.552+00:00","opid" : -935445414,"op" : "none","ns" : "","command" : {},"numYields" : 0,"locks" : {},"waitingForLock" : false,"lockStats" : {},"waitingForFlowControl" : false,"flowControlStats" : {}},{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "conn332","connectionId" : 332,"client" : "10.20.20.11:42736","clientMetadata" : {"driver" : {"name" : "NetworkInterfaceTL","version" : "4.4.15"},"os" : {"type" : "Linux","name" : "CentOS Linux release 7.9.2009 (Core)","architecture" : "x86_64","version" : "Kernel 3.10.0-1160.62.1.el7.x86_64"}},"active" : true,"currentOpTime" : "2023-03-28T01:37:05.552+00:00","effectiveUsers" : [{"user" : "__system","db" : "local"}],"opid" : -935445538,"secs_running" : NumberLong(6),"microsecs_running" : NumberLong(6388394),"op" : "command","ns" : "admin.$cmd","command" : {"isMaster" : 1,"maxAwaitTimeMS" : NumberLong(10000),"topologyVersion" : {"processId" : ObjectId("630480eb8e13bda8cb16c7e9"),"counter" : NumberLong(28)},"internalClient" : {"minWireVersion" : 9,"maxWireVersion" : 9},"$db" : "admin"},"numYields" : 0,"waitingForLatch" : {"timestamp" : ISODate("2023-03-28T01:36:59.264Z"),"captureName" : "FutureResolution"},"locks" : {},"waitingForLock" : false,"lockStats" : {},"waitingForFlowControl" : false,"flowControlStats" : {}},{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "NoopWriter","active" : true,"currentOpTime" : "2023-03-28T01:37:05.552+00:00","opid" : -935445599,"op" : "none","ns" : "","command" : {},"numYields" : 0,"locks" : {},"waitingForLock" : false,"lockStats" : {},"waitingForFlowControl" : false,"flowControlStats" : {}},{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "conn326","connectionId" : 326,"client" : "10.20.20.11:42726","appName" : "OplogFetcher","clientMetadata" : {"application" : {"name" : "OplogFetcher"},"driver" : {"name" : "MongoDB Internal Client","version" : "4.4.15"},"os" : {"type" : "Linux","name" : "CentOS Linux release 7.9.2009 (Core)","architecture" : "x86_64","version" : "Kernel 3.10.0-1160.62.1.el7.x86_64"}},"active" : true,"currentOpTime" : "2023-03-28T01:37:05.552+00:00","effectiveUsers" : [{"user" : "__system","db" : "local"}],"opid" : -935445493,"secs_running" : NumberLong(3),"microsecs_running" : NumberLong(3702937),"op" : "getmore","ns" : "local.oplog.rs","command" : {"getMore" : NumberLong("3869305470684881343"),"collection" : "oplog.rs","batchSize" : NumberLong(13981010),"maxTimeMS" : NumberLong(5000),"term" : NumberLong(3),"lastKnownCommittedOpTime" : {"ts" : Timestamp(1661570687, 1397),"t" : NumberLong(2)},"$db" : "local","$replData" : 1,"$oplogQueryData" : 1,"$readPreference" : {"mode" : "secondaryPreferred"},"$clusterTime" : {"clusterTime" : Timestamp(1661570687, 1399),"signature" : {"hash" : BinData(0,"AAAAAAAAAAAAAAAAAAAAAAAAAAA="),"keyId" : NumberLong(0)}}},"planSummary" : "COLLSCAN",{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "conn2764","connectionId" : 2764,"client" : "10.20.20.41:33552","appName" : "mongodb_exporter","clientMetadata" : {"driver" : {"name" : "mongo-go-driver","version" : "v1.10.3"},"os" : {"type" : "linux","architecture" : "amd64"},"platform" : "go1.19.1","application" : {"name" : "mongodb_exporter"}},"active" : true,"currentOpTime" : "2023-03-28T01:37:05.552+00:00","opid" : -935445535,"secs_running" : NumberLong(6),"microsecs_running" : NumberLong(6117158),"op" : "command","ns" : "admin.$cmd","command" : {"hello" : 1,"helloOk" : true,"topologyVersion" : {"processId" : ObjectId("630480eb8e13bda8cb16c7e9"),"counter" : NumberLong(28)},"maxAwaitTimeMS" : NumberLong(10000),"$db" : "admin","$readPreference" : {"mode" : "primaryPreferred"}},"numYields" : 0,"waitingForLatch" : {"timestamp" : ISODate("2023-03-28T01:36:59.535Z"),"captureName" : "FutureResolution"},"locks" : {},"waitingForLock" : false,"lockStats" : {},"waitingForFlowControl" : false,"flowControlStats" : {}},{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "WTCheckpointThread","active" : true,"currentOpTime" : "2023-03-28T01:37:05.552+00:00","opid" : -935445426,"op" : "none","ns" : "","command" : {},"numYields" : 0,"locks" : {},"waitingForLock" : false,"lockStats" : {},"waitingForFlowControl" : false,"flowControlStats" : {}},{"type" : "op","host" : "mongo03.tyun.cn:27017","desc" : "conn184","connectionId" : 184,"client" : "10.20.20.41:45032","clientMetadata" : {"driver" : {"name" : "NetworkInterfaceTL","version" : "4.4.15"},"os" : {"type" : "Linux","name" : "CentOS Linux release 7.9.2009 (Core)","architecture" : "x86_64","version" : "Kernel 3.10.0-1160.62.1.el7.x86_64"}},"active" : true,"currentOpTime" : "2023-03-28T01:37:05.552+00:00","effectiveUsers" : [{"user" : "__system","db" : "local"}],"opid" : -935445564,"secs_running" : NumberLong(7),"microsecs_running" : NumberLong(7951531),"op" : "command","ns" : "admin.$cmd","command" : {"isMaster" : 1,"maxAwaitTimeMS" : NumberLong(10000),"topologyVersion" : {"processId" : ObjectId("630480eb8e13bda8cb16c7e9"),"counter" : NumberLong(28)},"internalClient" : {"minWireVersion" : 9,"maxWireVersion" : 9},"$db" : "admin"},"numYields" : 0,"waitingForLatch" : {"timestamp" : ISODate("2023-03-28T01:36:57.701Z"),"captureName" : "FutureResolution"},"locks" : {},"waitingForLock" : false,"lockStats" : {},"waitingForFlowControl" : false,"flowControlStats" : {}}],"ok" : 1,"$clusterTime" : {"clusterTime" : Timestamp(1679967416, 1),"signature" : {"hash" : BinData(0,"hZEpDTiaiD3Zna+djn4cNU7WLjE="),"keyId" : NumberLong("7173500260914823169")}},"operationTime" : Timestamp(1679967416, 1)}03
查看当前数据库统计信息
该命令返回当前连接的数据库信息。如：查看 admin 数据库信息： rs0:PRIMARY> db.stats(){"db" : "admin","collections" : 4,"views" : 0,"objects" : 10,"avgObjSize" : 242.8,"dataSize" : 2428,"storageSize" : 131072,"indexes" : 6,"indexSize" : 188416,"totalSize" : 319488,"scaleFactor" : 1,"fsUsedSize" : 44225654784,"fsTotalSize" : 64174051328,"ok" : 1,"$clusterTime" : {"clusterTime" : Timestamp(1679967646, 1),"signature" : {"hash" : BinData(0,"G/+ynHN7GNtj09WoJaJ4TMXR/sc="),"keyId" : NumberLong("7173500260914823169")}},"operationTime" : Timestamp(1679967646, 1)}还可以查看其他数据库信息： rs0:PRIMARY> show dbsadmin 0.000GBconfig 0.000GBlocal 3.794GBmongoshake 0.000GBsignals 0.000GBstreams 0.000GBtest 6.814GBycsb 14.253GBrs0:PRIMARY> use streamsswitched to db streamsrs0:PRIMARY> db.stats(){"db" : "streams","collections" : 2,"views" : 0,"objects" : 2,"avgObjSize" : 40,"dataSize" : 80,"storageSize" : 40960,"indexes" : 2,"indexSize" : 40960,"totalSize" : 81920,"scaleFactor" : 1,"fsUsedSize" : 44226154496,"fsTotalSize" : 64174051328,"ok" : 1,"$clusterTime" : {"clusterTime" : Timestamp(1679967836, 1),"signature" : {"hash" : BinData(0,"L0keGbNUzAlINUX7sbG9t2TzkAk="),"keyId" : NumberLong("7173500260914823169")}},"operationTime" : Timestamp(1679967836, 1)}04
mongostat
mongostat 是 db.currentOp()及db.serverStatus()命令的外部工具。以下是一个演示：[root@mongo01 ~]# mongostat --host mongo03.tyun.cn:27017 --authenticationDatabase admin -u root 5Enter password:insert query update delete getmore command dirty used flushes vsize res qrw arw net_in net_out conn set repl time*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.61k 56.7k 19 rs0 PRI Mar 28 01:46:02.077*0 *0 *0 *0 0 4|0 0.3% 78.8% 1 5.43G 3.34G 0|0 1|0 1.78k 56.7k 19 rs0 PRI Mar 28 01:46:07.074*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.61k 56.8k 19 rs0 PRI Mar 28 01:46:12.075*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.79k 56.6k 19 rs0 PRI Mar 28 01:46:17.075*0 *0 *0 *0 0 5|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.65k 56.9k 19 rs0 PRI Mar 28 01:46:22.075*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.74k 56.5k 19 rs0 PRI Mar 28 01:46:27.074*0 *0 *0 *0 0 5|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.65k 56.9k 19 rs0 PRI Mar 28 01:46:32.074*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.74k 56.5k 19 rs0 PRI Mar 28 01:46:37.074*0 *0 *0 *0 0 5|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.65k 56.9k 19 rs0 PRI Mar 28 01:46:42.074*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.74k 56.5k 19 rs0 PRI Mar 28 01:46:47.074insert query update delete getmore command dirty used flushes vsize res qrw arw net_in net_out conn set repl time*0 *0 *0 *0 0 5|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.65k 56.9k 19 rs0 PRI Mar 28 01:46:52.075*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.74k 56.5k 19 rs0 PRI Mar 28 01:46:57.074*0 *0 *0 *0 0 5|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.65k 56.9k 19 rs0 PRI Mar 28 01:47:02.074*0 *0 *0 *0 0 4|0 0.3% 78.8% 1 5.43G 3.34G 0|0 1|0 1.74k 56.5k 19 rs0 PRI Mar 28 01:47:07.074*0 *0 *0 *0 0 5|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.65k 56.9k 19 rs0 PRI Mar 28 01:47:12.075*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.79k 56.6k 19 rs0 PRI Mar 28 01:47:17.074*0 *0 *0 *0 0 5|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.65k 56.9k 19 rs0 PRI Mar 28 01:47:22.076*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.74k 56.5k 19 rs0 PRI Mar 28 01:47:27.074*0 *0 *0 *0 0 5|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.65k 56.9k 19 rs0 PRI Mar 28 01:47:32.075*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.74k 56.5k 19 rs0 PRI Mar 28 01:47:37.074insert query update delete getmore command dirty used flushes vsize res qrw arw net_in net_out conn set repl time*0 *0 *0 *0 0 5|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.65k 56.9k 19 rs0 PRI Mar 28 01:47:42.074*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.74k 56.5k 19 rs0 PRI Mar 28 01:47:47.073*0 *0 *0 *0 0 5|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.65k 56.9k 19 rs0 PRI Mar 28 01:47:52.075*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.74k 56.5k 19 rs0 PRI Mar 28 01:47:57.074*0 *0 *0 *0 0 5|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.65k 56.9k 19 rs0 PRI Mar 28 01:48:02.075*0 *0 *0 *0 0 4|0 0.3% 78.8% 1 5.43G 3.34G 0|0 1|0 1.74k 56.5k 19 rs0 PRI Mar 28 01:48:07.074*0 *0 *0 *0 0 5|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.65k 56.9k 19 rs0 PRI Mar 28 01:48:12.074*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.79k 56.6k 19 rs0 PRI Mar 28 01:48:17.074*0 *0 *0 *0 0 5|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.65k 56.9k 19 rs0 PRI Mar 28 01:48:22.075*0 *0 *0 *0 0 4|0 0.3% 78.8% 0 5.43G 3.34G 0|0 1|0 1.74k 56.5k 19 rs0 PRI Mar 28 01:48:27.07405
mongotop
mongotop 是 db.runCommand({top: 1})命令的外部工具。以下是命令的演示：[root@mongo01 ~]# mongotop --host mongo03.tyun.cn:27017 --authenticationDatabase admin -u root 5Enter password:2023-03-28T01:50:12.279+0000 connected to: mongodb://mongo03.tyun.cn:27017/ns total read write 2023-03-28T01:50:17Zlocal.oplog.rs 4ms 4ms 0msadmin.$cmd.aggregate 0ms 0ms 0msadmin.system.keys 0ms 0ms 0msadmin.system.profile 0ms 0ms 0msadmin.system.roles 0ms 0ms 0msadmin.system.users 0ms 0ms 0msadmin.system.version 0ms 0ms 0msconfig.settings 0ms 0ms 0msconfig.system.indexBuilds 0ms 0ms 0msconfig.system.profile 0ms 0ms 0msns total read write 2023-03-28T01:50:22Zlocal.oplog.rs 4ms 4ms 0msadmin.$cmd.aggregate 0ms 0ms 0msadmin.system.keys 0ms 0ms 0msadmin.system.profile 0ms 0ms 0msadmin.system.roles 0ms 0ms 0msadmin.system.users 0ms 0ms 0msadmin.system.version 0ms 0ms 0msconfig.settings 0ms 0ms 0msconfig.system.indexBuilds 0ms 0ms 0msconfig.system.profile 0ms 0ms 0msns total read write 2023-03-28T01:50:27Zlocal.oplog.rs 4ms 4ms 0msadmin.$cmd.aggregate 0ms 0ms 0msadmin.system.keys 0ms 0ms 0msadmin.system.profile 0ms 0ms 0msadmin.system.roles 0ms 0ms 0msadmin.system.users 0ms 0ms 0msadmin.system.version 0ms 0ms 0msconfig.settings 0ms 0ms 0msconfig.system.indexBuilds 0ms 0ms 0msconfig.system.profile 0ms 0ms 0ms^C2023-03-28T01:50:28.048+0000 signal 'interrupt' received; forcefully terminating监控
监控是少不了的，可以考虑从主机及服务监控两个方面来监控 MongoDB。 01
主机监控
MongoDB 所在主机的监控是不可缺少的。现在有很多成熟的监控工具，具体选用什么监控工具，可以按照自己的习惯来选择即可。
02
服务监控
服务监控更是不可缺少的。

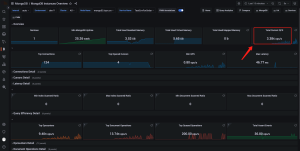

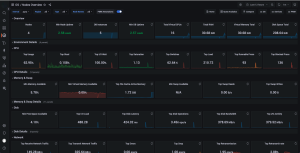

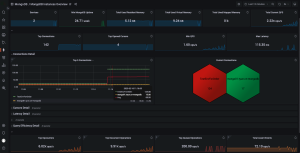

另外，我们对某个实例进行压测时，看看服务可以承受多大的压力，具体瓶颈在哪里，通过监控趋势图可以看得一清二楚。如：
run mongodb -s \-P workloads/workloada \-p recordcount=1000000 -p operationcount=1000000 \-p readproportion=0.5 -p updateproportion=0.5 \-p requestdistribution=zipfian \-p mongodb.url="mongodb://root:root123@mongo03.tyun.cn:27017/admin?waitQueueMultiple=100" \-threads 500在对数据库进行压测时，可以查看监控：
总结
上面我们介绍了一些列的诊断工具，可以帮助我们迅速地判断当前 MongoDB 的运行状态。通过这些诊断，就可以给 MongoDB 开出一个药方，使其更健康。本系列文章到此结束，希望本系列文章对大家有所帮助。后续我们会有更多的话题，请大家继续关注。 - 全局服务器统计信息：
